In industrial settings, controlling motor speed and ensuring smooth starts and stops is essential for maintaining operational efficiency and protecting equipment. Two of the most commonly used devices for these purposes are Variable Frequency Drives (VFDs) and Soft Starters. While both are designed to start and stop motors safely, they operate differently and are suited to distinct applications. This article will delve into the differences between these two devices and help you determine which one best suits your needs.

What is a Soft Starter?

A Soft Starter is an electrical device used to reduce the inrush current when starting an induction motor. Induction motors typically draw a large amount of current when started, which can damage the motor windings or other electrical components. Soft starters work by gradually increasing the voltage supplied to the motor, limiting the inrush current and ensuring a smooth start-up.

Soft starters typically use Thyristors, also known as Silicon-Controlled Rectifiers (SCRs), to control the voltage applied to the motor. These devices help prevent mechanical stress on the motor and connected systems by limiting the starting current and avoiding abrupt starts.

What is a VFD (Variable Frequency Drive)?

A VFD (Variable Frequency Drive) is a more advanced device used to control the speed of an electric motor. Unlike a soft starter, which simply limits inrush current, a VFD can adjust both the frequency and the voltage supplied to the motor, which directly controls its speed. VFDs offer a more versatile and efficient way to manage motor operations, allowing users to adjust the motor’s speed based on the application’s specific requirements.

A VFD works through three main components:

1. Rectifier: Converts incoming AC power to DC.
2. DC Filter: Smooths the DC power.
3. Inverter: Converts the DC power back to AC at the desired frequency and voltage.

Internal Workings: Soft Starter vs. VFD

Soft Starter: Soft starters use thyristors to regulate the voltage supplied to the motor. By gradually increasing the voltage, the soft starter limits the current at startup, which prevents electrical surges that could damage the motor. Once the motor reaches full speed, the soft starter is bypassed by a contactor.

VFD: A VFD, on the other hand, does not just manage the voltage; it actively changes the frequency and voltage of the motor’s power supply. This allows for precise speed control, making it ideal for applications that require variable motor speeds.

Key Differences Between VFD and Soft Starter

Functionality:

• Soft Starter: Primarily used for controlling motor startups and preventing inrush currents. It is ideal for applications where motor speed needs to remain constant once it reaches full speed.
• VFD: Provides full control over the motor’s speed and torque, adjusting both frequency and voltage. It is best for applications that require variable speed control throughout the operation.

Control Type:

• Soft Starter: Can only control the voltage applied to the motor, gradually increasing it during start-up.
• VFD: Adjusts both frequency and voltage, providing variable speed control throughout the motor’s operation.

Size:

• Soft Starter: Generally smaller and more compact due to its simpler design.
• VFD: Larger and more complex, given its advanced functionalities.

Applications:

• Soft Starter: Best suited for applications where the motor needs to start smoothly but operate at a constant speed once it reaches full RPM. Examples include pumps, fans, and compressors where speed control is not necessary.
• VFD: Ideal for applications that require adjustable speeds and torque. Examples include conveyors, extruders, and other processes where varying speed is essential.

Cost:

• Soft Starter: Typically less expensive due to its simpler design and functionality.
• VFD: More expensive because it offers advanced features like speed control, torque regulation, and energy efficiency.

When to Use a Soft Starter

Soft starters are best used in applications where the primary concern is controlling the motor’s inrush current and where speed control is not required once the motor reaches its operating speed. Examples of such applications include:

• Water Treatment Plants: Soft starters can be used for water pumps that need a smooth start but do not require speed adjustments.
• HVAC Systems: Soft starters are used to manage the starting current of motors in HVAC systems where constant motor speed is needed.

When to Use a VFD

VFDs are suitable for applications where the motor’s speed needs to be controlled dynamically or adjusted based on the load requirements. These are commonly used in applications such as:

• Conveyor Belts: VFDs help in adjusting the speed of conveyor belts depending on the load and operational requirements.
• Extruders: In manufacturing, extruders require precise speed control to ensure the consistency of material output.
• Pumps and Fans: In applications like HVAC systems and chemical plants, VFDs are used to vary the speed of pumps and fans based on the system’s needs, improving energy efficiency.

Summary of VFD vs. Soft Starter

Conclusion

In conclusion, both VFDs and Soft Starters serve important roles in motor control, but their applications, capabilities, and costs differ significantly. While soft starters are ideal for controlling motor startups and preventing inrush currents, VFDs are the best choice for applications requiring precise speed control and torque regulation.

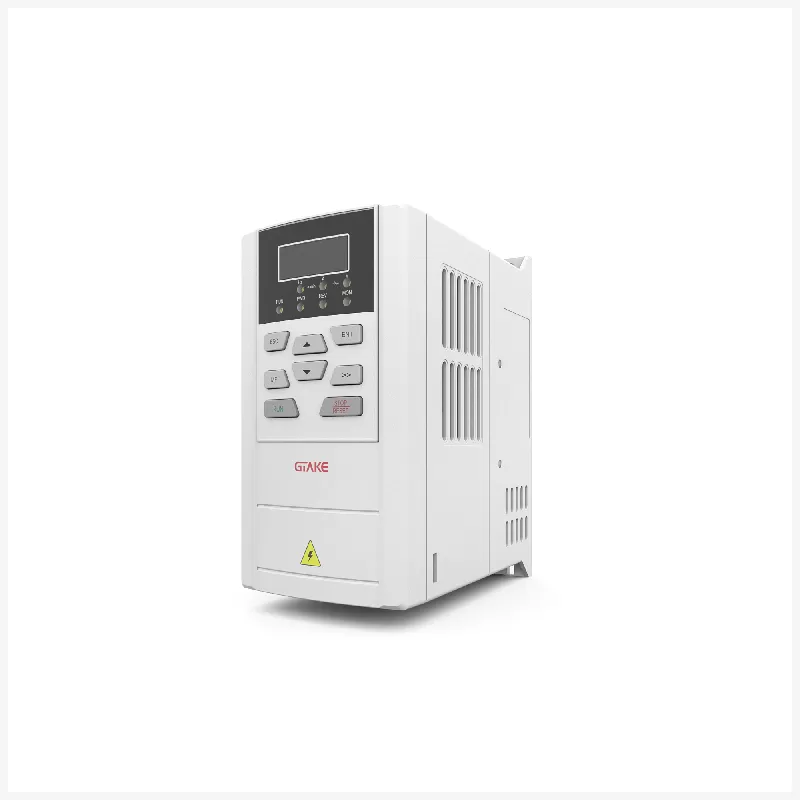

If you’re looking for reliable VFD solutions for your industrial applications, GTAKE offers cutting-edge AC frequency inverters and variable frequency drives designed for optimal performance. Our solutions provide excellent energy efficiency, reliability, and adaptability to various industries, helping you enhance your operational efficiency.
