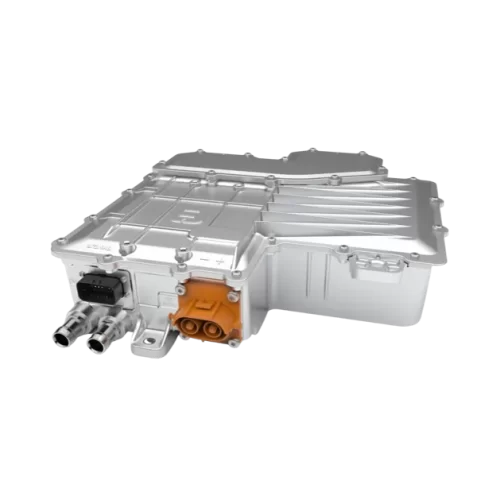

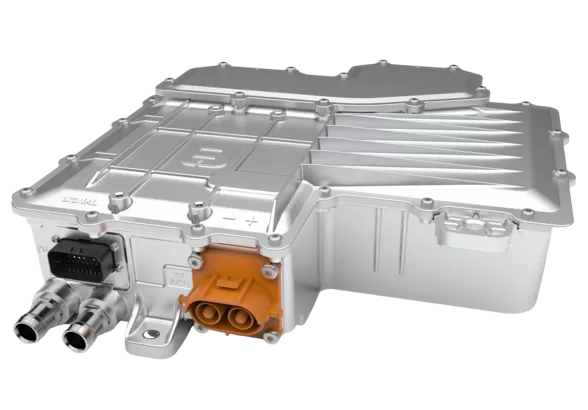

The D08 series is a 144V voltage platform motor controller for mini vans and mini trucks，Vehicle control technology is integrated into this series controller to provide efficient control of the three phase AC motor for the vehicle power drive system, providing the most cost-effective design for vehicle developers and providing a flexible, comfortable and safe handling experience for vehicle drivers and passengers.
The highest efficiency for the whole system is >98%, while for motor system >96%; The area that its efficiency over 85%: >75%.
Traction & Lift 2-in-1 inverter，Applicable to Mini Trucks, Mini Vans
Multi-functional I/O terminals, meeting the requirements of different applications.EV/HEV traction motor controller-D08 frame
| Model | Applicable motor | Rated DC voltage (V DC) | Peak current | Rated output power |
| KTZ14X45SDD01 | Synchronous / asynchronous motor | 144 | 450A RMS(1min)&
400A RMS(1min) |
25kW & 23kW |
| Power Supply | |
| Rated input voltage | 144V DC |
| Peak input voltage | 177V DC |
| Auxiliary low-voltage power supply | 8V DC ~ 16V DC |
| Output Data (U, V, W) | |
| Peak output current | 450A RMS& 400A RMS |
| Duration | 1 min |
| Rated output current | 170A RMS |
| Applicable Motor | |
| Type | PMSM, IM or BLDC |
| Position sensor | Magnetic encode (TLE5012B E1000 or AS5047D) |
| Temperature sensor type | KTY84 / PT1000 / NTC |
| Temperature sensor channel | 1 |
| Control characteristics | |
| Speed range | 1:1000 |
| Speed accuracy | ±0.02% |
| Start torque | 0Hz, 200% |
| Torque response | ＜5ms |
| Torque accuracy | ±5% |
| Mechanical parameter | |
| Weight | 10 kg |
| Dimension | W×H×D(mm): 417*409*120 |
| Ambient | |
| Vibration | GB/T18488.1-2015 5.6.4.1, 5.6.4.2 and GB/T 28046.3-2011 |
| Humidity | Relative humidity 5% – 95 %. No condensation |
| Ambient temperature | -40ºC – 55 ºC |
| Altitude | 0 – 2,000 m |
| Rated output current derated 1% every 100 m above 1,000 m | |
| Storage temperature | -40 – +85 ºC |
| Efficiency | ≥98 % at rated working point |
| IP grade | IP 67 |
| Cooling method | Water cooling |
