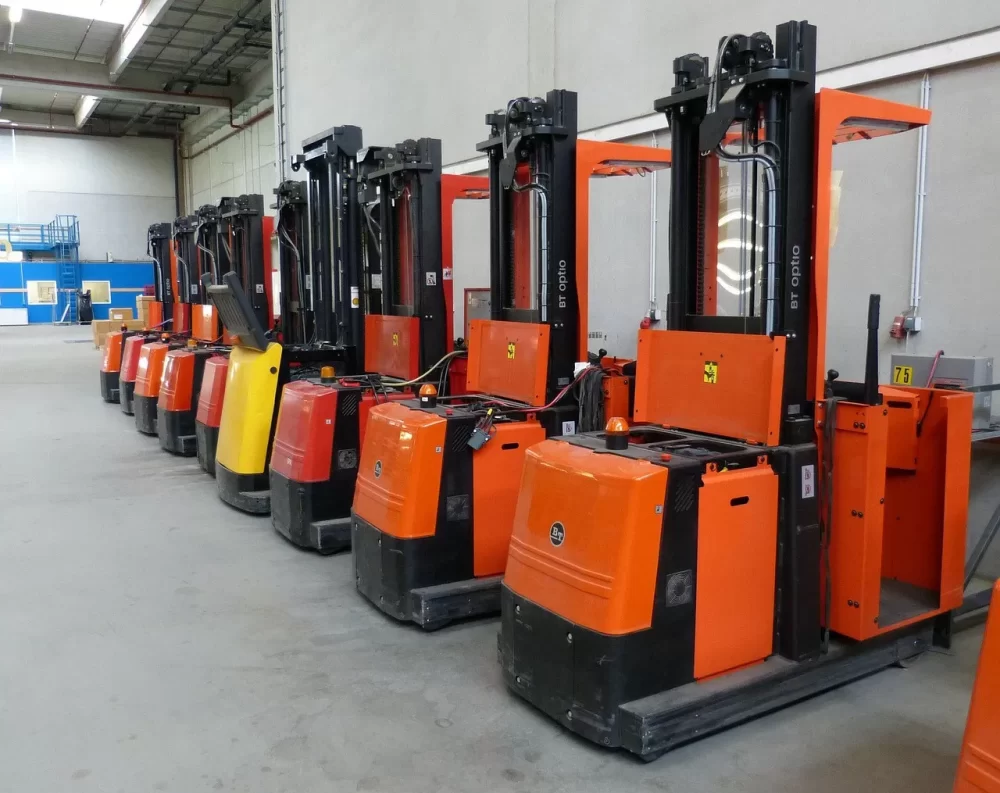

Applicable to 108V electric forklifts, etc.
The highest efficiency for the whole system is >98%, while for motor system >96%; The area that its efficiency over 85%: >75%.

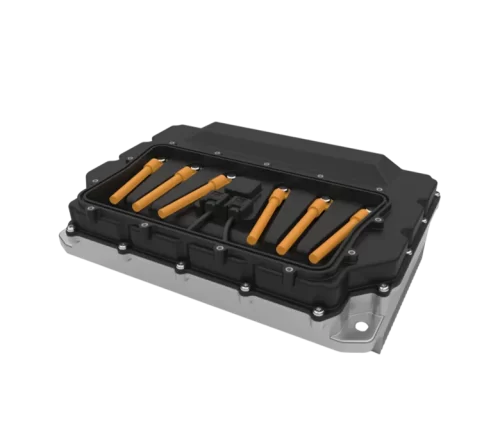

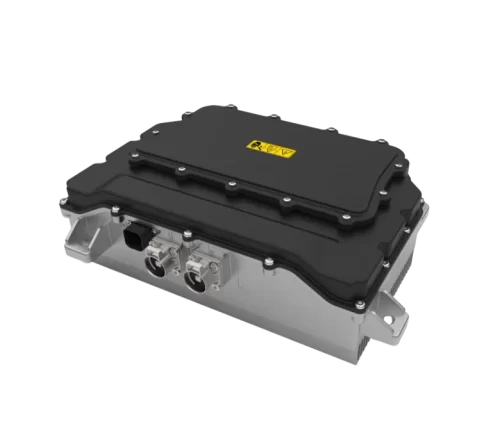

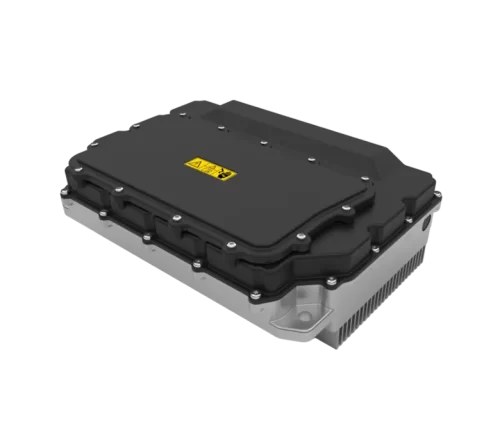

Multi-functional I/O terminals, meeting the requirements of different applications.EV/HEV traction motor controller-D09 frame
| Model | Applicable motor | Rated DC voltage (V DC) | Rated output power | Rated output current |
| KTZ11X35ZED01 | Synchronous / asynchronous motor | 108 | 15kW & 15kW | 140A (RMS) |
| Power Supply | |
| Rated input voltage | 108V DC |
| Peak input voltage | 130V DC |
| Auxiliary low-voltage power supply | 8V DC ~ 16V DC |
| Auxiliary source MAX. current (A) | 3 |
| Output Data | |
| Peak output current for traction (A rms) | 350A |
| Peak output current for Lift (A rms) | 350A |
| Duration | 1 min |
| Peak output power | 35kW & 35kW |
| Applicable Motor | |
| Type | PMSM, IM or BLDC |
| Position sensor | Magnetic encode (TLE5012B E1000 or AS5047D) |
| Temperature sensor type | KTY84 / PT1000 / NTC |
| Temperature sensor channel | 1 |
| Control characteristics | |
| Speed range | 1:1000 |
| Speed accuracy | ±0.02% |
| Start torque | 0Hz, 200% |
| Torque response | ＜5ms |
| Torque accuracy | ±5% |
| Mechanical parameter | |
| Weight | 8.3 kg |
| Dimension | W×H×D(mm): 387*282.5*119 |
| Ambient | |
| Vibration | GB/T18488.1-2015 5.6.4.1, 5.6.4.2 and GB/T 2423.17 |
| Humidity | Relative humidity 5% – 95 %. No condensation |
| Ambient temperature | -40ºC – 55 ºC |
| Altitude | 0 – 2,000 m |
| Rated output current derated 1% every 100 m above 1,000 m | |
| Storage temperature | -40 – +85 ºC |
| Efficiency | ≥98 % at rated working point |
| IP grade | IP 67 |
| Cooling method | Natural cooling |
