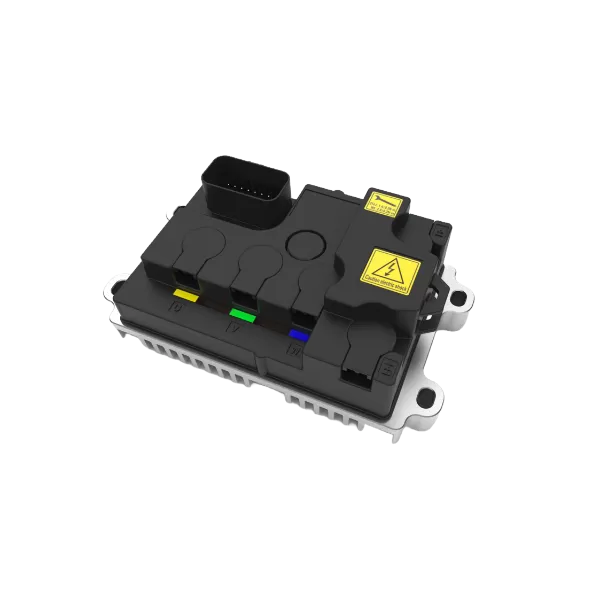

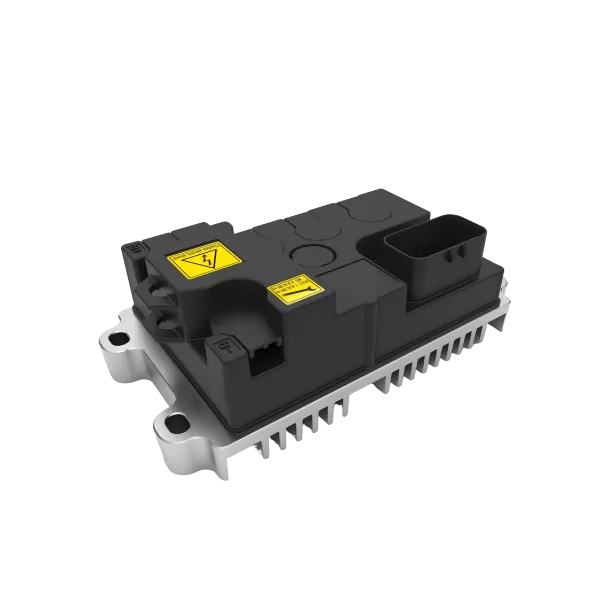

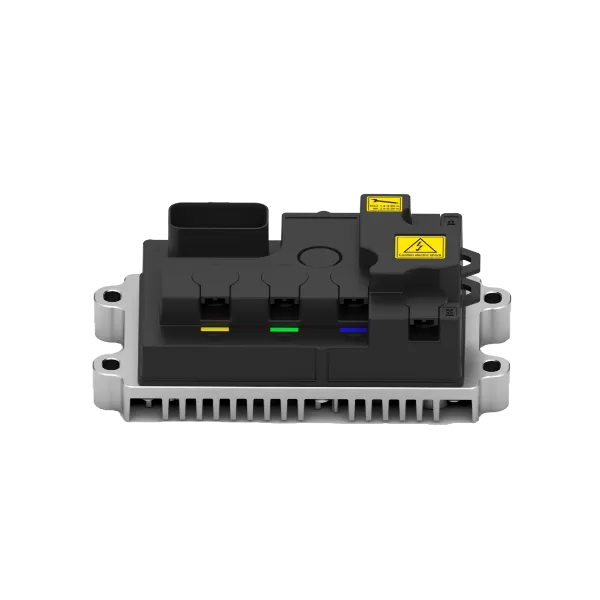

Vehicle control technology is integrated into this series controller to provide efficient control of the three phase AC motor for the vehicle power drive system, providing the most cost-effective design for vehicle developers and providing a flexible, comfortable and safe handling experience for vehicle drivers and passengers.
The highest efficiency for the whole system is >98%, while for motor system >96%; The area that its efficiency over 85%: >75%.
Applicable to E-motorcycles powered by rated voltage of battery 48V DC
Multi-functional I/O terminals, meeting the requirements of different applications.EV/HEV traction motor controller-D11 frame
| Model | Applicable motor | Input voltage range | Peak current | Rated output power |
| KTZ05H19ZMAXX
(The last two code |
Synchronous / asynchronous motor | 40V~70V | 180 A/1min | 3kW |
| Power Supply | |
| Rated input voltage | 48V DC |
| Input voltage range | 40V DC ~ 70V DC |
| Auxiliary low-voltage power supply | 9V DC ~ 16V DC |
| Output Data (U, V, W) | |
| Peak output current | 180A |
| Duration | 1 min |
| Output frequency range | 0~600 Hz |
| Applicable Motor | |
| Type | PMSM, IM or BLDC |
| Position sensor | Magnetic encode (TLE5012B E1000 or AS5047D) |
| Temperature sensor type | KTY84 / PT1000 / NTC |
| Temperature sensor channel | 1 |
| Control characteristics | |
| Speed range | 1:1000 |
| Speed accuracy | ±0.02% |
| Start torque | 0Hz, 200% |
| Torque response | ＜5ms |
| Torque accuracy | ±5% |
| Mechanical parameter | |
| Weight | 0.9 kg |
| Dimension | W×H×D(mm): 180*99*60 |
| Ambient | |
| Vibration | GB/T18488.1-2015 5.6.4.1, 5.6.4.2 and GB/T 28046.3-2011 |
| Humidity | Relative humidity 5% – 95 %. No condensation |
| Ambient temperature | -40ºC – 55 ºC |
| Altitude | 0 – 2,000 m |
| Rated output current derated 1% every 100 m above 1,000 m | |
| Storage temperature | -40 – +85 ºC |
| Efficiency | ≥98 % at rated working point |
| IP grade | IP 65 |
| Cooling method | Natural cooling |
