Abundant user source meets the requirements of simple VCU quickly.
Fast & accurate insulation detection, quick pratection for power loss, etc.

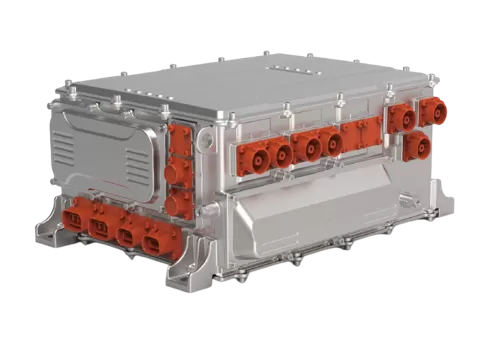

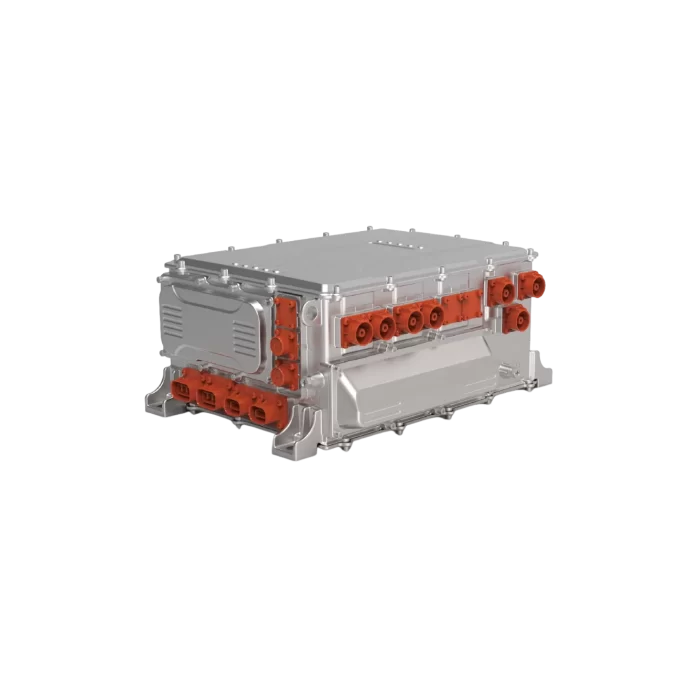

Key components are dedicated for vehiclesEV/HEV traction motor controller-M15 frame
|
Current/Power Option |
|||
| IGBT data | Rated/Peak power | Application model | DC voltage VDC |
| 1200V-450A（Peak current 320A/1min） | 90kW/135kW | 6-8m bus and 3T logistics vehicle | 540/336 |
| 1200V-600A（Peak current 410A/1min） | 132kW/198kW | 8-10m bus and 4.5T logistics vehicle | 540/336 |
| 1200V-800A（Peak current 520A/1min） | 150kW/230kW | Bus over 10m | 540/336 |
| Mechanical parameter | |
| Weight | 18Kg, ±5% |
| Dimension | W×H×D(mm): 474×197×351 |
| Ambient | |
| Vibration | GB/T18488.1-2015 5.6.4.1, 5.6.4.2 and GB/T 28046.3-2011 |
| Humidity | Relative humidity 5% – 95 %. No condensation |
| Ambient temperature | -40ºC – 55 ºC |
| Altitude | 0 – 2,000 m |
| Rated output current derated 1% every 100 m above 1,000 m | |
| Storage temperature | -40 – +85 ºC |
| Efficiency | ≥98 % at rated working condition |
| IP grade | IP 67 |
| Cooling method | Liquid cooling |
