Our MCUs undergo rigorous testing and comply with industry standards, ensuring robust performance and longevity under varying conditions.
Abundant user source meets the requirements of simple VCU quickly.
Fast & accurate insulation detection, quick pratection for power loss, etc.

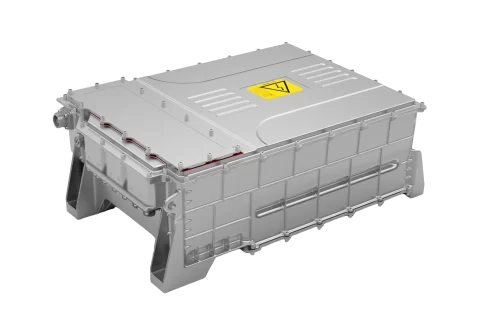

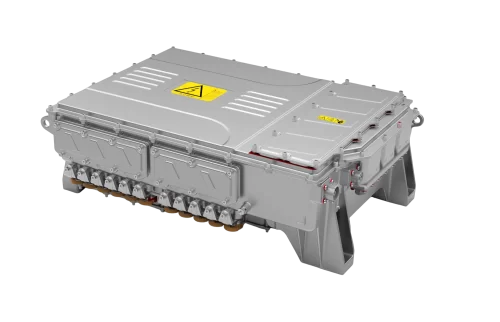

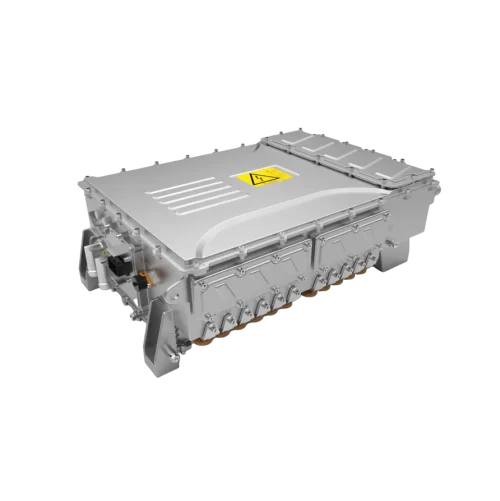

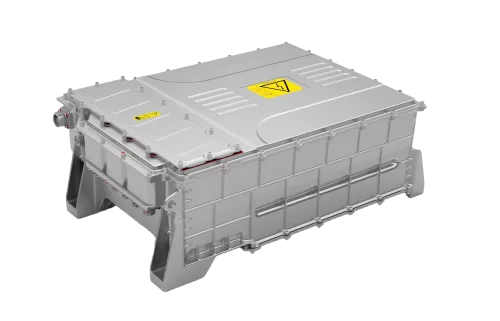

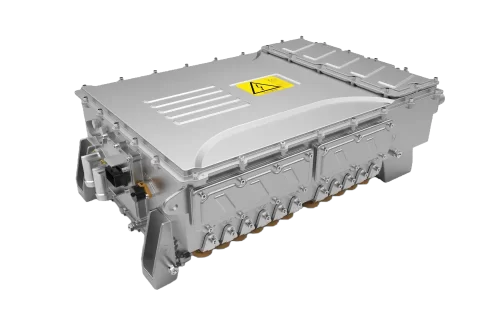

Key components are dedicated for vehiclesEV/HEV traction motor controller-M16 frame
| Current/Power Option | |
| Model | KTZ54X41SUGK** |
| Applicable motor | Synchronous / asynchronous motor |
| Input voltage range | 400~750 VDC |
| Rated input voltage | 620VDC |
| Rated Output Power | 150kVA |
| Peak Output Power | 270kVA |
| Mechanical parameter | |
| Weight | 50Kg, ±5% |
| Dimension | W×H×D(mm): 696*473*246 |
| Ambient | |
| Vibration | GB/T18488.1-2015 5.6.4.1, 5.6.4.2 and GB/T 28046.3-2011 |
| Humidity | Relative humidity 5% – 95 %. No condensation |
| Ambient temperature | -40ºC – 55 ºC |
| Altitude | 0 – 2,000 m |
| Rated output current derated 1% every 100 m above 1,000 m | |
| Storage temperature | -40 – +85 ºC |
| Efficiency | ≥98 % at rated working condition |
| IP grade | IP 67 |
| Cooling method | Liquid cooling |
Our MCUs undergo rigorous testing and comply with industry standards, ensuring robust performance and longevity under varying conditions.
MCUs optimize power consumption, enhance vehicle performance, and contribute to environmental sustainability by reducing emissions.
