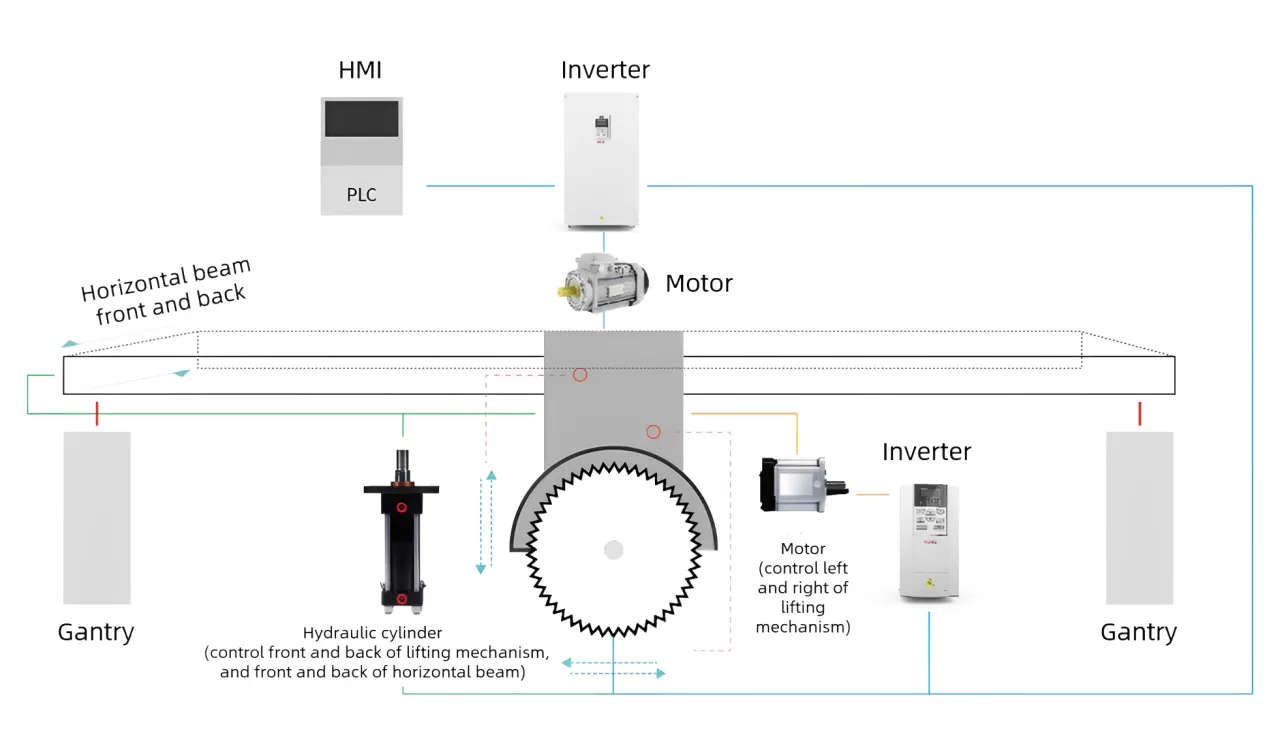

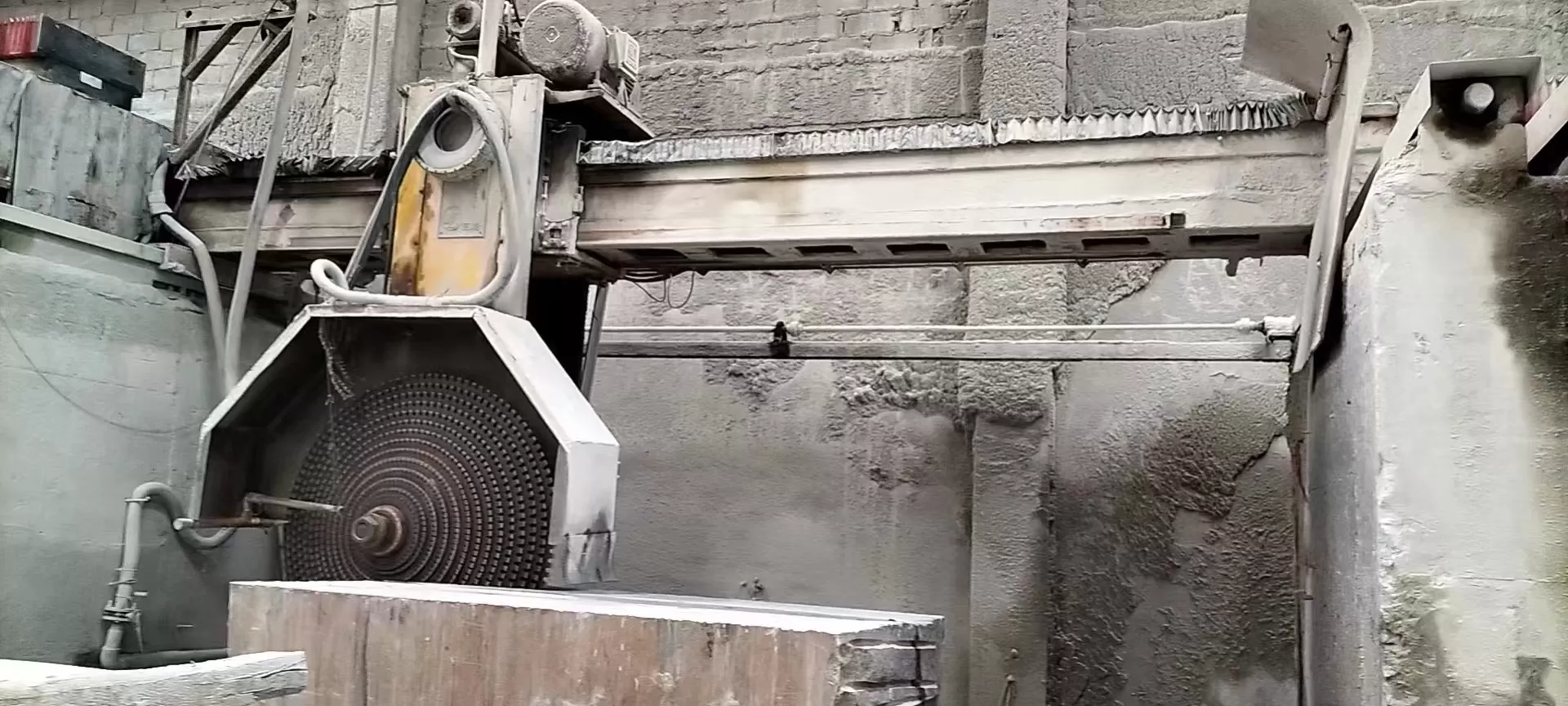

The bridge stone cutting machine is one of the key equipment in the stone processing industry, designed to cut large stone blocks in one go. It consists of dual columns, a large horizontal beam, a lifting mechanism, and a spindle box.
The vertical (up-down) motion of the lifting mechanism and the forward-backward movement of the beam are typically controlled via a hydraulic system. Some manufacturers adopt servo systems for higher precision.
A low-power inverter (3.7–7.5 kW) controls the speed of the lateral cutting motion.
The main motor, which drives the cutting blade, is powered by either a star-delta starter or an inverter. Its power ranges from 45 to 132 kW, and it typically operates for extended periods, making it the most energy-intensive component.
GK620 is a general-purpose AC drive with V/Hz and sensor-less vector control. It’s powerful in performance, reliable in quality and optimized in structure. GK620 is widely used in various applications including air compressor, crane & lift, metal processing, mining, mills, food and beverage processing, packaging, conveyor, textile, plastics, fan & pump, etc.
