Against the backdrop of the recycling industry being listed as a national strategic emerging industry, the waste recycling industry is entering a phase of rapid development. In a large enterprise, GTAKE GK620 AC drives work in coordination with asynchronous motors, playing a dual-axis drive role in the operation of the crusher equipment, ensuring the efficient, continuous, and stable operation of the dual-axis asynchronous motors.
The main feature of a dual-axis crusher is that it has two parallel rotating shafts, usually equipped with multiple blades or hammers. During operation, these two shafts rotate at different speeds or in opposite directions, and through the shear and impact action between the blades, the material is crushed into smaller particles.

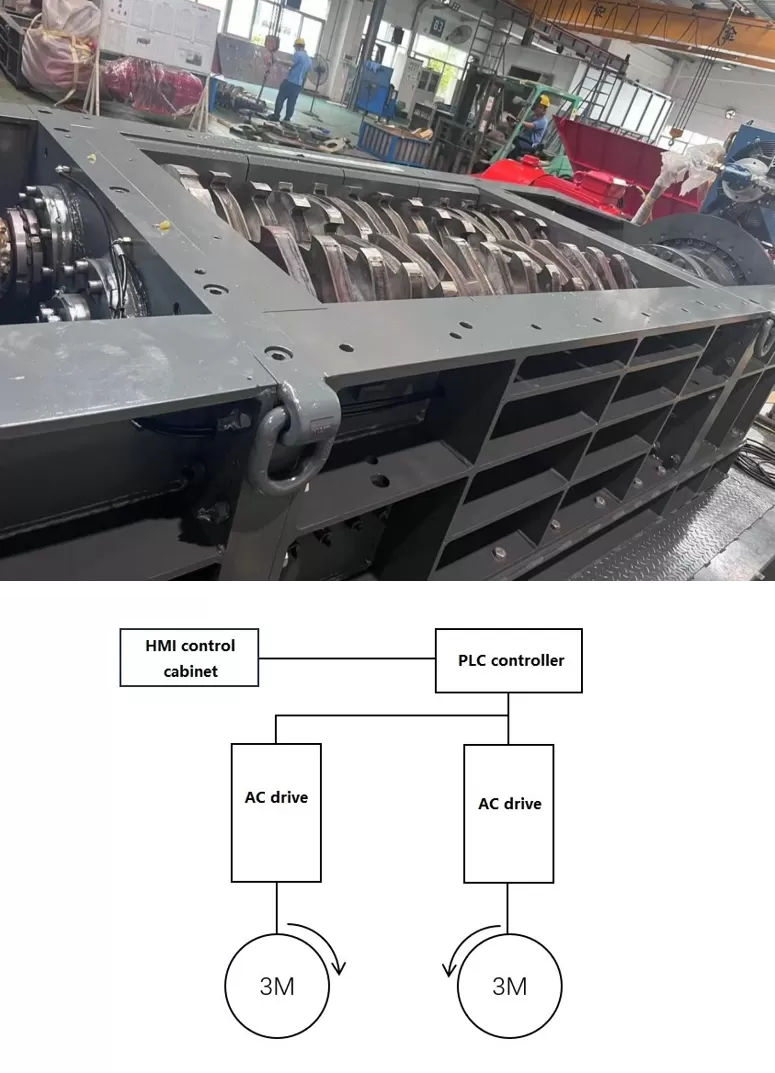

Specific drive solution: Two AC drives separately drive two motors, independently controlling motor 1 and motor 2, to achieve simultaneous start and stop. During specific commissioning, it is necessary to ensure that the directions of motor 1 and motor 2 are opposite.
2 Wan Nan Electric main motors, with details as follows:
Motor model: YXYF-280M-4
Rated power: 90 kW; rated voltage:380 V;
Rated current: 165 A; rated torque:579 Nm;
of poles: 4; rated frequency: 50 Hz;
Rated speed: 1500 rpm; IP grade: IP55.

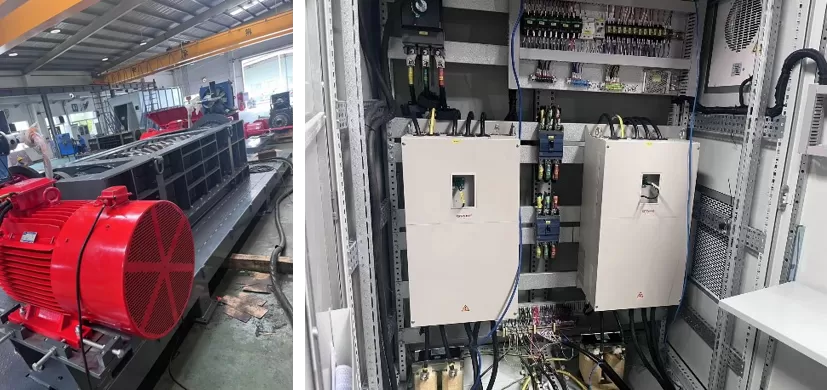

2 GTAKE Electric AC drives, with details as follows:
AC drive model: GK620-4T110G/132L
Output power: 110 kW; Carrier frequency: 2.0 kHz;
Input voltage: 3 phase 380/440V;
Input frequency: 50/60 Hz; Input current: 192 A;
Output voltage: 3 phase 0-440V;
Output frequency: 0-600 Hz; Output current 210 A.

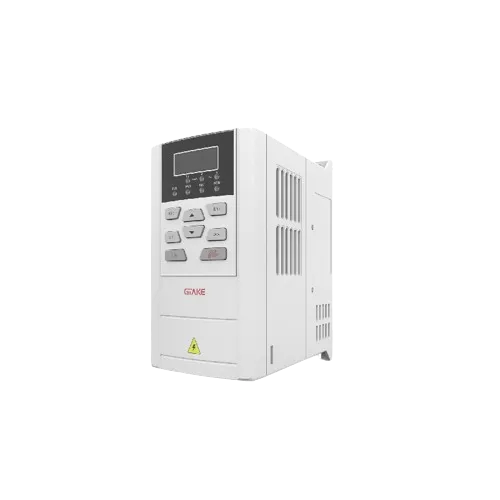

GK620 is a general-purpose AC drive with V/Hz and sensor-less vector control. It’s powerful in performance, reliable in quality and optimized in structure. GK620 is widely used in various applications including air compressor, crane & lift, metal processing, mining, mills, food and beverage processing, packaging, conveyor, textile, plastics, fan & pump, etc.
